As markets push toward tighter deadlines and steeper quality targets, low-volume sectors-medicine, aerospace, high-tech electronics-now expect quick turnarounds and parts that fit the first time. Custom metal stamping dies meet that demand by taking a sketch straight to a working tool, letting factories jump from prototype to volume runs while keeping every detail sharp.
In this piece we show how these bespoke dies form tight curvatures and tiny tabs that stock tools can rarely handle. We also pair them with precision-machined metal components, giving operators simple tips for smarter setups, leaner workflows, and repeatable results on the shop floor.
Understanding the Role of Custom Dies in Niche Markets
Where high-tempo niches rule, dies must match part quirks, new alloys, and hard tests the normal catalog never sees. Because shapes, tolerances, and serial audits come from contracts-not catalogs, a standard die simply wastes steel, time, and trust, so designers build a custom solution.
Niche markets benefit from:
- Fast design loops for quick functional prototypes
- Narrow tolerances so parts fit together without fuss
- Material-tailored setups that work with stainless, titanium, or copper
- Seamless links to later steps such as CNC milling or EDM
In areas where mistakes cost dearly, pairing custom dies with precision machining metal parts keeps performance steady from first unit to last.
Designing for Prototype Speed
In product development, speed and accuracy matter most. Custom dies let designers swap features, dial in tolerances, and test new materials before placing a big production order.
Low-Volume Tooling Options
For small runs or proof-of-concept builds, shops often turn to softer tools-aluminum dies, modular sets, or even 3D-printed inserts. They deliver:
- Fast lead times
- Modest tool budgets
- Easy tweaks to the shape
This flexibility pays off in robotics and precision optics, where each iteration can shift dimensions, mounting holes, or feature angles.
Concurrent Engineering
To shave weeks from the calendar, die builders and CNC teams swap notes early. Their joint planning ensures stamped parts mesh perfectly with later-machined components, smoothing assembly.
Even after a part leaves the stamping press, extra machining may be needed to add threaded holes, slots or cooling fins. By matching the die shape to those later tasks, makers cut scrap and keep work moving smoothly.
Material considerations in die and part design
Choosing the right metal for both the die and the stamped blank is crucial for performance, tool life and trouble-free follow-on machining.
Die materials
Production dies face extreme pressure and must resist wear from repeated impacts and abrasion. Depending on the job, popular choices include:
- Tool steels, such as D2 or A2
- Carbide inserts for truly abrasive sheets
- Specialized coatings to cut friction and galling
Workpiece materials
Some sectors rely on non-standard or high-performance alloys:
- Medical devices call for biocompatible titanium
- Aerospace parts favour lightweight aluminium or Inconel
- Electronics need corrosion-proof metals like phosphor bronze
When die and blank are well matched, edges come out clean, burrs remain tiny and every stamp is consistent-qualities that matter when parts must fit into precision machining fixtures that hold tolerances within a micrometer.
Geometry and Tolerance Control for Complex Parts
In premium manufacturing, the ability to hold tight size limits often sets a company apart. Custom metal-stamping dies give builders that control over geometry, so each part fits, works, and plays nicely with the next.

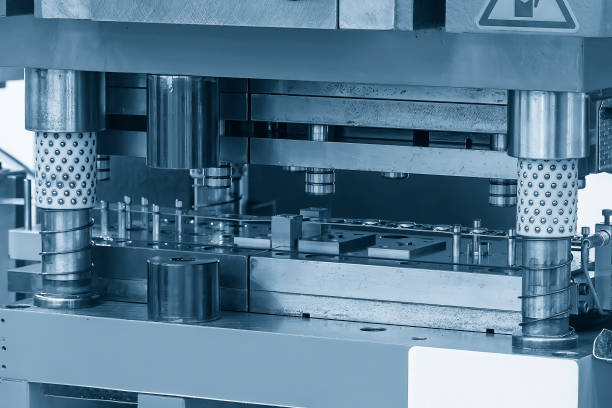

Progressive vs. Compound Dies
- Progressive dies suit long strips needing several steps-cut, bend, coin-called in line. Parts move from one station to the next at speed, and each strike finishes just one job, keeping accuracy high.
- Compound dies, by contrast, slice and shape a part with a single press, making them perfect for small, detailed shapes.
Precision Features
Ribs, tabs, louvers, hinges-all these helpers fit into custom dies but must still match:
- Assembly tolerances
- Mating part requirements
- Secondary machining steps
When those links hold, stamped parts drop straight into precision-machined assemblies. Take a bracket that carries milled circuit boards: even 0.1 mm out can ruin connections and kill the job.
From Die Validation to Production Scaling
Once a custom stamping die passes its prototype stage, it still needs a round of careful testing and tweaking before the factory ramps up. Scaling the process is about keeping quality tight while smoothing the day-to-day operation.
Pilot Runs
Initial small runs reveal how the die behaves across key areas:
- Dimensional consistency
- Surface quality
- Lubrication needs
- Tool wear rates
These checks guard against surprises and make sure the stamped parts fit the precision-metal components already in the product.
Automation and Inline Inspection
Today’s stamping presses often come loaded with sensors and cameras that scan every part the moment it leaves the tool. This is vital for safety-critical gear such as surgical instruments or aircraft brackets, where even a tiny twist can put lives on the line.
Real-time data lets factory teams:
- Track tool degradation
- Reduce rework
- Improve yield
That digital link between the last prototype and steady-volume output meets the no-compromise standards of B2B clients who expect every run to match the first.
Precision Machining as a Complement to Stamping
Stamping is fast and cost-effective on flat or gently formed shapes, yet many designs still demand cut-off steps such as drilling, threading, or contour shaping-and that’s where precision machining takes over.
Hybrid Manufacturing Strategies
Stamped parts are made close to their final shape and then cleaned up on CNC machines. That approach cuts both the time spent machining and the scrap metal that would otherwise pile up.
Common examples are:
- Stamped backplates for EV batteries, which are milled to add cooling fins and vents
- Stamped gears or pulleys, later ground or turned to bring teeth and bores into tight spec
When makers unite in-house stamping dies with precision machining, they strike a smart mix of speed, accuracy, and easy growth.
Part Traceability
In regulated fields, knowing exactly where each part came from is mandatory. Custom dies can imprint codes or logos, and a quick CNC mark or QR cut adds belts-and-whistles traceability from first coil to final truck.
Conclusion: Enabling Innovation with Custom Die Solutions
Custom stamping tools give B2B companies a leg up when they need one-off parts for niche sectors. Be it a small run of medical sensor housings or a wave of aerospace brackets, the speed and exactness of specials does never disappoint.
By matching die layout to sheet metal, finish shapes, and follow-on tasks like precision machining, firms slash lead times, boost quality, and keep pace with tomorrow’s engineering needs.
If you design products, buy parts, or run a shop that dreams up fresh ideas for small markets, knowing how stamping and machining work together is more than a bonus; it’s crucial for staying strong over the years.
